CNC Guillotine Shearing Machine
6mm Steel Hydraulic Shearing Machine
Aluminum Sheet Shearing Machine
Click to enlarge
CNC Guillotine Shearing Machine
6mm Steel Hydraulic Shearing Machine
Aluminum Sheet Shearing Machine
Sheet Metal Press Brake
4000mm Professional Sheet Metal Press Brake Machine Original price was: $37,000.00.Current price is: $33,500.00.set
Back to products
6mm Steel Hydraulic Shearing Machine
6mm Steel Hydraulic Shearing Machine for Metal Cutting Original price was: $12,500.00.Current price is: $11,500.00.set
KAVDO

4m CNC Guillotine Shearing Machine for Metal Cutting

Original price was: $21,000.00.Current price is: $19,500.00.set

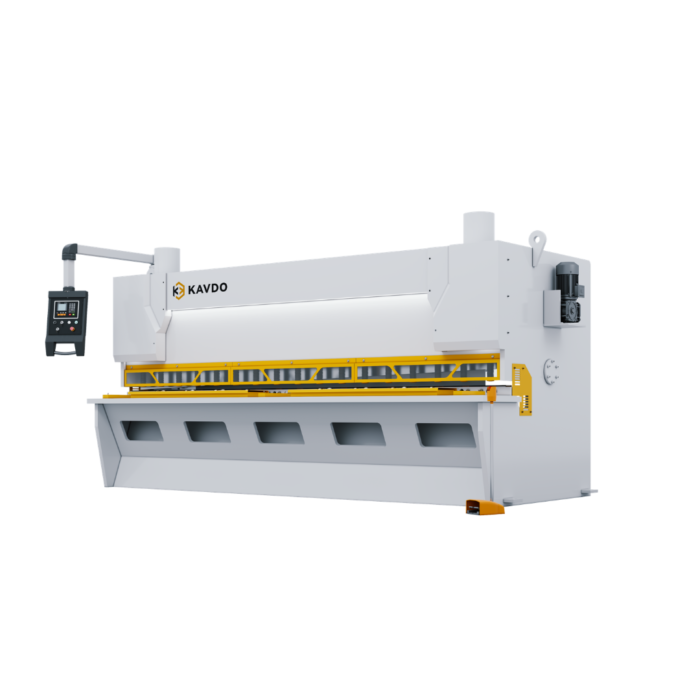

The CNC Guillotine Shearing Machine is designed for precise and efficient cutting of sheet metal in modern fabrication workshops. Equipped with a high-precision CNC control system and a durable hydraulic structure, it delivers smooth, accurate, and repeatable cutting performance. This machine is suitable for cutting carbon steel, stainless steel, aluminum, and other metal sheets. With adjustable blade clearance and a reliable backgauge system, the CNC Guillotine Shearing Machine improves production efficiency and ensures high-quality cutting results for metal processing industries.

100 in stock

Add to compare
Add to wishlist

Guillotine Shearing Machine

Size Unit 6X2500 6X3200 6X4000 6X5000 6X6000 8X2500 8X3200 8X4000 8X5000 8X6000 10X2500 10X3200 10X4000 10X5000 10X6000 12X25000 12X3200 12X4000 12X5000 12X6000 16X2500 16X3200 16X4000 16X5000 16X6000 20X2500 20X3200 20X4000 20X5000 20X6000
Cutting Thickness mm 6 6 6 6 6 8 8 8 8 8 10 10 10 10 10 12 12 12 12 12 16 16 16 16 16 20 20 20 20 20
Cutting Length mm 2500 3200 4000 5000 6000 2500 3200 4000 5000 6000 2500 3200 4000 5000 6000 2500 3200 4000 5000 6000 2500 3200 4000 5000 6000 2500 3200 4000 5000 6000
Throat Depth mm 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150
Number of Strokes times/min 6-11 7-16 7-14 8-12 6-12 10-16 10-15 8-14 7-12 5-10 10-16 9-15 8-13 6-12 5-10 10-16 10-15 9-14 8-13 8-12 9-14 9-13 8-12 8-11 8-10 10-14 10-13 9-13 8-11 8-10
Cutting Angle ° 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-1.5 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2 0.5-2
Number of Presser Feet pcs 10 12 18 22 26 10 12 18 22 26 10 12 18 22 26 10 12 18 22 26 10 12 18 22 26 10 12 18 22 26
Number of Blades pcs 2 3 4 5 6 2 3 4 5 6 2 3 4 5 6 2 3 4 4 6 2 3 4 4 6 2 3 4 4 6
Blade Length mm 1300 1100 1025 1025 1025 1300 1100 1025 1025 1025 1300 1100 1025 1025 1025 1300 1100 1025 1025 1025 1300 1100 1025 1025 1025 1300 1100 1025 1025 1025
Table Height mm 705 750 750 800 850 745 800 800 800 850 760 800 800 800 850 800 850 900 950 1000 800 850 900 950 1000 850 900 950 1000 1050
Number of Front Supports mm pcs 4 4 4 6 3 4 4 4 6 3 4 4 4 6 3 4 4 4 6 3 4 4 4 6 3 4 4 4 6
Front Support Length mm 500 500 500 800 800 500 500 500 800 800 500 500 500 800 800 500 500 500 800 800 500 500 500 800 800 500 500 500 800 800
Oil Tank L 260 300 400 480 550 260 300 400 480 550 260 320 460 480 550 350 450 500 580 600 350 450 500 580 600 350 450 580 600 650
Back Stop Distance mm 600 600 600 800 800 600 600 600 800 800 600 600 600 800 800 600 600 600 800 800 800 800 800 800 800 800 800 800 800 800
Motor Power KW 7.5 7.5 7.5 11 11 11 11 11 15 15 15 15 15 18.5 18.5 15 15 18.5 18.5 22 18.5 18.5 22 22 30 22 22 30 30 37
Weight kg 4500 6300 8000 11000 15000 5600 7000 8500 10500 16000 6500 8300 11000 15000 21000 7600 9400 12500 17000 24000 9000 11000 14300 20000 29500 1100 15500 19000 27000 38000
Length mm 3200 3900 4700 5700 6700 3200 3950 4700 5700 6700 3200 3650 4460 5750 6750 3250 3980 4800 5800 6800 3280 3950 4800 5800 6800 3680 4000 4800 5900 6900
Width mm 1500 1600 1650 1800 2000 1600 1700 1750 1950 2100 1700 1800 1900 2250 2200 1800 1900 2050 2150 2250 1900 2000 2100 2200 2300 2050 2200 2300 2400 2500
Height mm 2000 2050 2100 2300 2500 2150 2250 2250 2600 2550 2200 2300 2400 2600 2600 2250 2350 2550 2600 2700 2400 2500 2650 2900 3150 2600 2800 3100 3200 3300
Specifications
Description

The CNC Guillotine Shearing Machine is a high-performance metal cutting solution designed for accurate and efficient sheet metal processing. Built with a robust welded steel frame and advanced hydraulic drive system, this machine ensures excellent cutting stability, long service life, and consistent performance in industrial production environments.

This shearing machine is widely used in sheet metal fabrication, machinery manufacturing, automotive parts production, electrical cabinets, and construction equipment industries. It can precisely cut various metal sheets including carbon steel, stainless steel, aluminum, and galvanized plates. The guillotine cutting design provides clean, straight edges and reduces material deformation during the cutting process.

The CNC Guillotine Shearing Machine is equipped with an intelligent CNC control system that allows operators to easily set cutting parameters such as cutting length, backgauge positioning, and cutting sequence. The automated backgauge system improves positioning accuracy and significantly increases production efficiency, especially for batch processing.

In addition, the machine features adjustable blade clearance to adapt to different material thicknesses, ensuring optimal cutting quality and extending blade life. Safety protection systems and a user-friendly control interface further enhance operational safety and convenience.

With its high cutting precision, durable construction, and advanced automation capabilities, the CNC Guillotine Shearing Machine is an ideal solution for manufacturers seeking efficient and reliable sheet metal cutting equipment.

Key Features

  • High Precision CNC Control – Accurate parameter setting and automated operation.

  • Robust Welded Steel Frame – Provides high rigidity and long-term stability.

  • Hydraulic Drive System – Smooth and powerful cutting performance.

  • Adjustable Blade Clearance – Optimized cutting quality for different material thicknesses.

  • Precision Backgauge System – Improves positioning accuracy and productivity.

  • Clean Guillotine Cutting – Produces straight edges with minimal material distortion.

Additional information
Weight 999 kg
Dimensions 1000 × 1000 × 1000 mm
Brand

KAVDO
Function

Cutting
Lead Time

30 Days
Payment Term

LC

,

TT
Price Term

CIF

,

DDP

,

EXW

,

FOB
Warranty

3 Years
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “4m CNC Guillotine Shearing Machine for Metal Cutting”

Your email address will not be published. Required fields are marked *

SKU: KD20263138 Category: Tags: , , , ,
