Original price was: $64,000.00.$57,800.00Current price is: $57,800.00.set

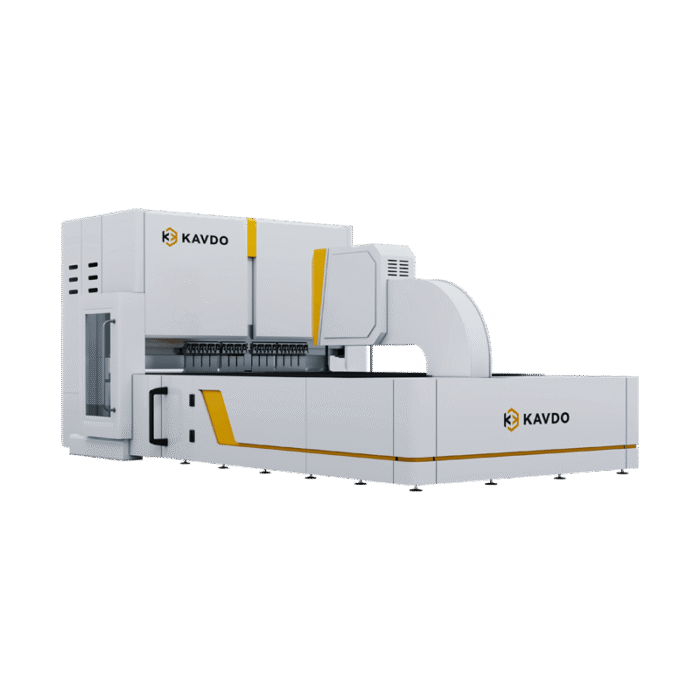

Automatic panel bending machine is designed for high-efficiency sheet metal processing with excellent precision and automation. It is ideal for producing panels, enclosures, cabinets, and complex metal parts with consistent bending quality. Equipped with advanced CNC control and automated operation, this machine helps manufacturers reduce labor costs, improve productivity, and achieve stable results for large-scale metal fabrication applications.
100 in stock
| Item | Unit | PB-1400 | PB-1400 Pro | PB-1600 | PB-1600 Pro | PB-2000 | PB-2000 Pro | PB-2000 Max | PB-2500 | PB-2500 Por | PB-2500 Max | PB-3000 Max |
| Max. Bending Length | mm | 1400 | 1400 | 1600 | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 |
| Max. Bending Width | mm | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Max. Bending Height | mm | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 110 |
| Min. Bending Height | mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Min. Bending Radius | mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Bending Angle | ° | ±180 | 4±1804 | 17±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 |
| Bending Thickness (Stainless Steel) | mm | 1 | 1.5 | 1 | 1.5 | 1 | 1.5 | 2 | 1 | 1.5 | 2 | 1.5 |
| Bending Thickness (Carbon steel) | mm | 1.5 | 2 | 1.5 | 2 | 1.5 | 2 | 2.5 | 1.5 | 2 | 2 | 2 |
| Bending Thickness (Aluminum plate) | mm | 2.5 | 3.5 | 2.5 | 3.5 | 2.5 | 3.5 | 3.5 | 2.5 | 3.5 | 3.5 | 3.5 |
| Min. Material Thickness | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Min. Indide Size (Four-Side) | mm | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 160*280 | 160*280 |
| Min. Working Accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Max. Bending Speed | s/bending | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max. Feeding Speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Feeding Structure | / | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm |
| Worktable Structure | / | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball |
| Motor Power | kw | 44.5 | 60 | 61 | 82 | 61 | 93 | 213 | 68 | 93 | 214.5 | 216 |
| Average Working Power | kw | 2.2 | 3.0 | 3.1 | 4.1 | 3.1 | 4.7 | 10.7 | 3.4 | 4.7 | 10.7 | 10.8 |
| Length | mm | 4600 | 5000 | 4800 | 5000 | 5150 | 5800 | 5800 | 6100 | 6300 | 6300 | 6900 |
| Width | mm | 2600 | 2800 | 2800 | 2800 | 3200 | 3170 | 3170 | 3800 | 3700 | 3700 | 4300 |
| Height | mm | 2400 | 2480 | 2300 | 2480 | 2300 | 2500 | 2500 | 2320 | 2500 | 2500 | 2800 |
Automatic panel bending machine is an advanced solution for modern sheet metal fabrication, designed to deliver fast, accurate, and consistent bending performance. It integrates intelligent control technology, automated feeding, positioning, and bending processes to improve production efficiency while reducing manual operation requirements.
This machine is widely used for manufacturing electrical cabinets, elevator panels, kitchen equipment, metal enclosures, and other precision sheet metal products. Compared with traditional bending methods, the automatic panel bending machine provides higher flexibility, shorter setup time, and better repeatability for mass production.
Key Features:
The automatic panel bending machine is an ideal choice for manufacturers seeking intelligent automation, high precision, and cost-effective solutions for modern sheet metal fabrication. It helps businesses improve competitiveness by achieving faster production, better quality control, and reduced operating costs.
Centralized automatic lubrication system that delivers precise amounts of lubricant to all critical moving parts on a timed schedule — reducing wear, extending component life and minimizing manual maintenance.
High-precision ground ball screws with preloaded nuts deliver exceptional positioning accuracy and smooth motion transmission — ensuring repeatable bending results within ±0.01 mm tolerance.
Heavy-duty linear guide rails with precision ball carriages provide ultra-smooth, rigid and low-friction guidance for all moving axes — maintaining positional accuracy even under heavy loads and high-speed operation.
Premium-grade bearings from world-class manufacturers ensure whisper-quiet rotation, minimal vibration and extended operational life — critical for maintaining bending precision over millions of cycles.
High-performance precision reducers deliver exceptional torque density with minimal backlash — translating servo motor power into smooth, accurate mechanical motion for consistent bending force control.
Multi-axis CNC servo control system enables fully programmable motion on all critical axes — providing automated tool positioning, backgauge adjustment and bending blade control for complex part geometries.
A press brake is an industrial machine used to bend sheet metal. It works by clamping the workpiece between a punch (top tool) and die (bottom tool), then applying force to create precise bends. Most modern press brakes use air bending, which allows for flexible angle control with minimal tooling changes.
Our press brakes can process various metals including mild steel, stainless steel, aluminum, copper, and galvanized steel. The bending capacity depends on material thickness, tensile strength, and bend length. Please refer to our tonnage charts for specific material capabilities.
Yes. Our CNC press brakes feature programmable backgauges with multiple axes (X, R, Z1, Z2), allowing for precise positioning of complex multi-bend parts. Optional tool changers and angle measurement systems further enhance productivity for batch production.
Under load, the ram and bed deflect slightly, causing uneven bends. Our compensation systems use hydraulic cylinders or mechanical wedge blocks in the worktable to counteract this deflection, ensuring uniform bend angles across the entire sheet length.
Standard models typically ship within 4-8 weeks. Custom configurations may require longer lead times. All our press brakes come with a comprehensive warranty covering major components. Extended warranty options are available for additional peace of mind.
We offer a range of press brake types including mechanical press brakes, hydraulic press brakes, and CNC press brakes. Our hydraulic and CNC models feature advanced deflection compensation, programmable backgauges, and precision control for complex bending operations.
Our press brake models range from 40 tons to 500+ tons with bending lengths from 1.5m to 6m or more. Maximum thickness capacity varies by model—typically 1mm to 25mm for mild steel. Contact us for specifications tailored to your requirements.
CNC press brakes offer higher precision, repeatability, and efficiency. They reduce setup time through programmable backgauges, minimize human error, and enable quick changeovers between different part programs. Deflection compensation ensures consistent bend angles across the full length.
Regular maintenance includes hydraulic oil changes, lubrication of guide ways and bearings, inspection of punches and dies for wear, and verification of safety systems. We provide detailed maintenance schedules and training. Annual professional inspections are recommended.
Yes. We offer professional installation and commissioning, operator training on safe operation and programming, and comprehensive after-sales support including spare parts supply and technical assistance. Our global service network ensures prompt response when you need us.
At KAVDO, we believe in the power of collaboration. Our trusted partnerships with leading manufacturers in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative Press Brake solutions that meet the evolving needs of our clients. Our commitment to excellence is reflected in the strong relationships we have built — precision bending, reliability, and exceptional ROI. Join us in celebrating our valued customers who trust KAVDO for their sheet metal fabrication needs.
Perfect bending accuracy without compromising tolerances. The consistent finish is impressive. Plus, the electro-hydraulic system keeps our workshop running smoothly with minimal maintenance. Great for quality and production efficiency!
Throughput tripled instantly! The dual-sided processing and servo control save immense time. We achieved 300% faster speeds, and labor savings covered the investment in six months. Perfect for high-volume production.
Factory direct, no middlemen, ensuring the best prices for our Press Brake customers.
Quote Now
Enjoy peace of mind with a three-year warranty and free parts replacement for your Press Brake.
Quote Now
Our multilingual team ensures efficient communication for all your Press Brake needs.
Quote Now
The Press Brake machines are delivered on time, ensuring our customers receive them promptly.
Quote Now
Comprehensive quality checks guarantee the quality of every KAVDO Press Brake machine.
Quote Now
We provide prompt, localized service in multiple countries for your convenience.
Quote NowGet professional advice and competitive pricing within 24 hours. Tell us about your requirements and our team will prepare a tailored solution for you.
Fill in the form below and we'll get back to you shortly.
| Weight | 995 kg |
|---|---|
| Dimensions | 1000 × 1000 × 1000 mm |
| Brand |
KAVDO |
| Lead Time |
30 Days |
| Price Term |
CIF ,DDP ,EXW ,FOB |
| Function |
Bending |
| Payment Term |
LC ,TT |
| Warranty |
3 Years |
