Original price was: $23,000.00.$21,000.00Current price is: $21,000.00.set

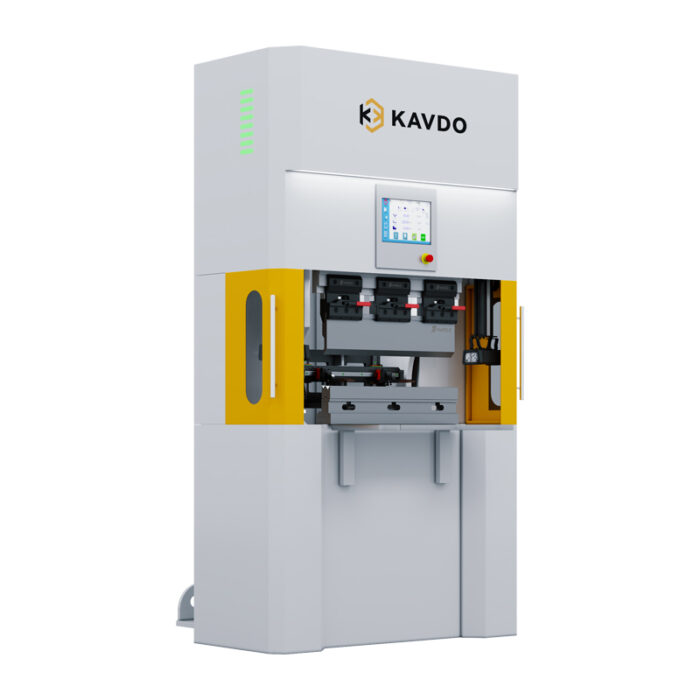

The 30 ton press brake is a compact and efficient solution for precision sheet metal bending applications. Designed for small and medium fabrication projects, this machine provides reliable bending accuracy, stable performance, and easy operation. With a strong frame structure and advanced control options, the 30 ton press brake is ideal for workshops, metalworking companies, and manufacturers requiring high-quality bending results with limited production space.
100 in stock
| Item | Unit | 35T1250 | 43T2000 | 65T2500 | 100T3200 |
| Bending Force | 6 - 8 | 350 | 430 | 650 | 1000 |
| Bending Length | 8 -10 | 1250 | 2000 | 2500 | 3200 |
| Colimns Distance | 10 - 12 | 1130 | 1400 | 2100 | 2800 |
| Throat Depth | 12 - 14 | 410 | 410 | 410 | 350 |
| Daylight | 14 - 16 | 470 | 470 | 470 | 470 |
| Front Support | set | 1 | 1 | 1 | 1 |
| Y Axis Servo Motor Motor | KW | 7.5*2 | 11*2 | 15*2 | 30*2 |
| Y-axis Stroke | mm | 200 | 200 | 200 | 200 |
| X-axis Stroke | mm | 500 | 500 | 500 | 600 |
| R-axis Stroke | mm | 140 | 140 | 140 | 200 |
| Z1/Z2-axis Stroke | mm | 400 | 600 | 900 | 2500 |
| Y-axis Down Speed | mm/sec | 135 | 180 | 160 | 150 |
| Y-axis Return Speed | mm/sec | 135 | 180 | 165 | 180 |
| Y-axis Working Speed | mm/sec | 50 | 50 | 50 | 50 |
| X-axis Moving Speed | mm/sec | 500 | 500 | 500 | 500 |
| R-axis Moving Spees | mm/sec | 200 | 200 | 200 | 200 |
| Z1/Z2-axis Moving Speed | mm/sec | 1000 | 1000 | 1000 | 1000 |
| Y-axis Accuracy | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| X-axis Accuracy | mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| R-axis Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Z1/Z2-zxis Accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Length | mm | 1475 | 2020 | 2520 | 3600 |
| Width | mm | 1358 | 1388 | 1700 | 1722 |
| Height | mm | 2439 | 2439 | 2664 | 2664 |
30 Ton Press Brake is a compact metal forming machine designed for accurate and efficient sheet metal bending. It is an ideal choice for small fabrication workshops, custom metal processing businesses, and manufacturers who need reliable bending performance without requiring a large-capacity machine.
Built with a rigid frame structure and precision manufacturing technology, this press brake ensures excellent stability during operation. The optimized hydraulic system provides smooth movement and consistent bending force, helping operators achieve accurate angles and repeatable results for various metal materials.
The 30 ton press brake combines flexibility, efficiency, and cost-effectiveness, making it a practical solution for businesses looking to improve their metal bending capabilities. Whether used for prototypes, custom fabrication, or small-batch production, this machine delivers dependable performance and excellent value.
Choose from a range of advanced CNC controllers with touchscreen interfaces, 3D bend simulation and offline programming capabilities.
High-accuracy segmented tooling designed to fully exploit the electric press brake's precision advantage for tight-tolerance bending work.
Advanced laser-based finger protection that follows the punch tip dynamically, enabling safe high-speed operation without sacrificing cycle time.
Real-time laser or tactile angle measurement built into the lower die for live feedback and automatic springback compensation on the first bend.
Adjustable front sheet followers that move in sync with the ram to support large or heavy sheet metal during the bending process.
Ready-to-connect interface for robotic bending cell integration. The electric drive's precise, repeatable positioning makes it ideal for automated production lines.
A press brake is an industrial machine used to bend sheet metal. It works by clamping the workpiece between a punch (top tool) and die (bottom tool), then applying force to create precise bends. Most modern press brakes use air bending, which allows for flexible angle control with minimal tooling changes.
Our press brakes can process various metals including mild steel, stainless steel, aluminum, copper, and galvanized steel. The bending capacity depends on material thickness, tensile strength, and bend length. Please refer to our tonnage charts for specific material capabilities.
Yes. Our CNC press brakes feature programmable backgauges with multiple axes (X, R, Z1, Z2), allowing for precise positioning of complex multi-bend parts. Optional tool changers and angle measurement systems further enhance productivity for batch production.
Under load, the ram and bed deflect slightly, causing uneven bends. Our compensation systems use hydraulic cylinders or mechanical wedge blocks in the worktable to counteract this deflection, ensuring uniform bend angles across the entire sheet length.
Standard models typically ship within 4-8 weeks. Custom configurations may require longer lead times. All our press brakes come with a comprehensive warranty covering major components. Extended warranty options are available for additional peace of mind.
We offer a range of press brake types including mechanical press brakes, hydraulic press brakes, and CNC press brakes. Our hydraulic and CNC models feature advanced deflection compensation, programmable backgauges, and precision control for complex bending operations.
Our press brake models range from 40 tons to 500+ tons with bending lengths from 1.5m to 6m or more. Maximum thickness capacity varies by model—typically 1mm to 25mm for mild steel. Contact us for specifications tailored to your requirements.
CNC press brakes offer higher precision, repeatability, and efficiency. They reduce setup time through programmable backgauges, minimize human error, and enable quick changeovers between different part programs. Deflection compensation ensures consistent bend angles across the full length.
Regular maintenance includes hydraulic oil changes, lubrication of guide ways and bearings, inspection of punches and dies for wear, and verification of safety systems. We provide detailed maintenance schedules and training. Annual professional inspections are recommended.
Yes. We offer professional installation and commissioning, operator training on safe operation and programming, and comprehensive after-sales support including spare parts supply and technical assistance. Our global service network ensures prompt response when you need us.
At KAVDO, we believe in the power of collaboration. Our trusted partnerships with leading manufacturers in the metalworking industry enhance our capabilities and expand our offerings. Together, we strive to deliver innovative Press Brake solutions that meet the evolving needs of our clients. Our commitment to excellence is reflected in the strong relationships we have built — precision bending, reliability, and exceptional ROI. Join us in celebrating our valued customers who trust KAVDO for their sheet metal fabrication needs.
Perfect bending accuracy without compromising tolerances. The consistent finish is impressive. Plus, the electro-hydraulic system keeps our workshop running smoothly with minimal maintenance. Great for quality and production efficiency!
Throughput tripled instantly! The dual-sided processing and servo control save immense time. We achieved 300% faster speeds, and labor savings covered the investment in six months. Perfect for high-volume production.
Factory direct, no middlemen, ensuring the best prices for our Press Brake customers.
Quote Now
Enjoy peace of mind with a three-year warranty and free parts replacement for your Press Brake.
Quote Now
Our multilingual team ensures efficient communication for all your Press Brake needs.
Quote Now
The Press Brake machines are delivered on time, ensuring our customers receive them promptly.
Quote Now
Comprehensive quality checks guarantee the quality of every KAVDO Press Brake machine.
Quote Now
We provide prompt, localized service in multiple countries for your convenience.
Quote NowGet professional advice and competitive pricing within 24 hours. Tell us about your requirements and our team will prepare a tailored solution for you.
Fill in the form below and we'll get back to you shortly.
| Weight | 995 kg |
|---|---|
| Dimensions | 1000 × 1000 × 1000 mm |
| Brand |
KAVDO |
| Lead Time |
30 Days |
| Price Term |
CIF ,DDP ,EXW ,FOB |
| Function |
Bending |
| Payment Term |
LC ,TT |
| Warranty |
3 Years |
