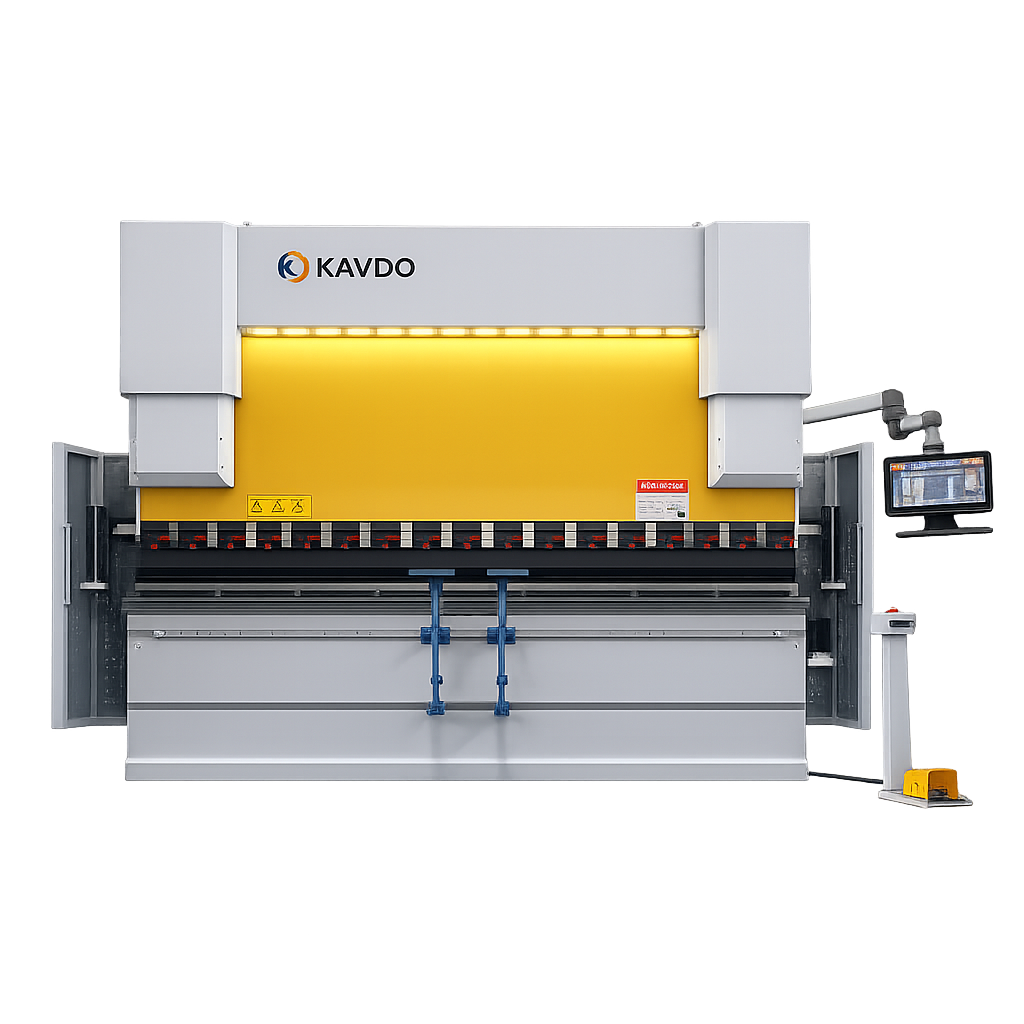

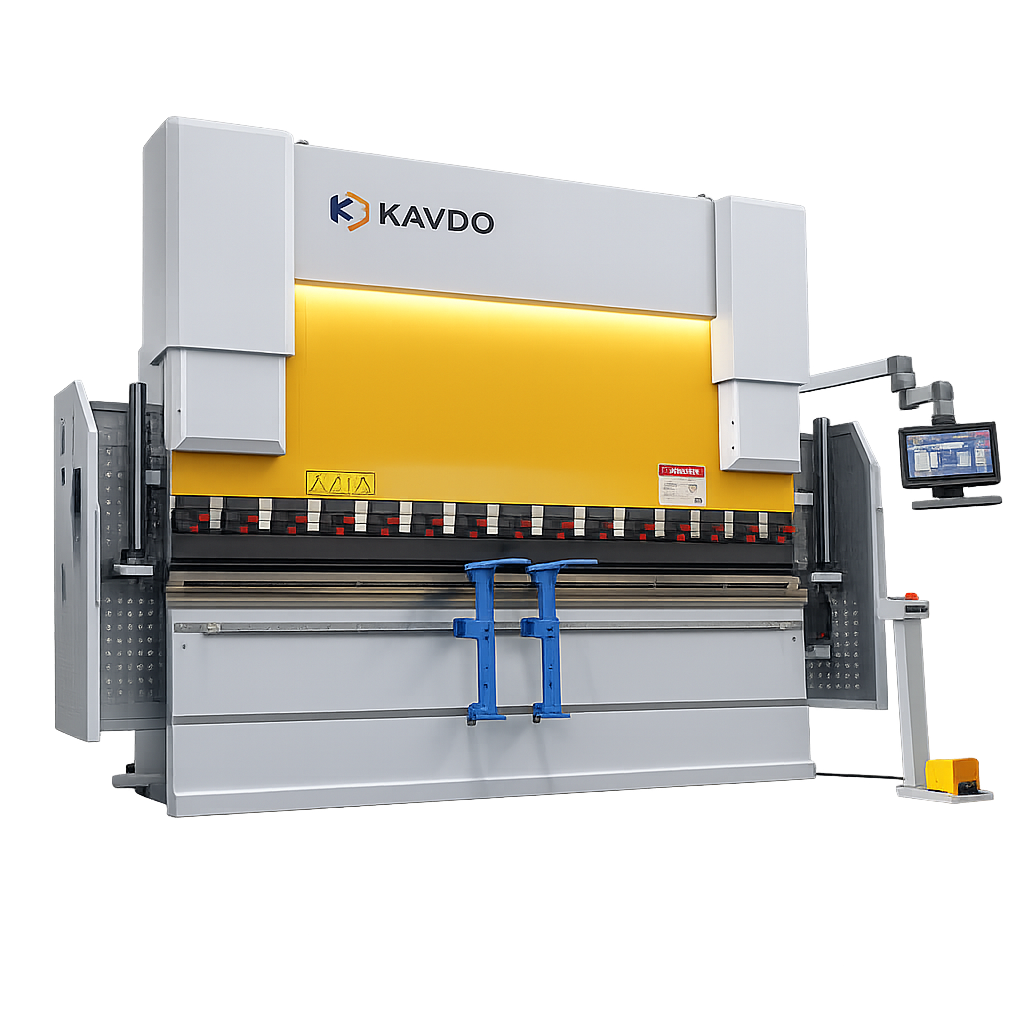

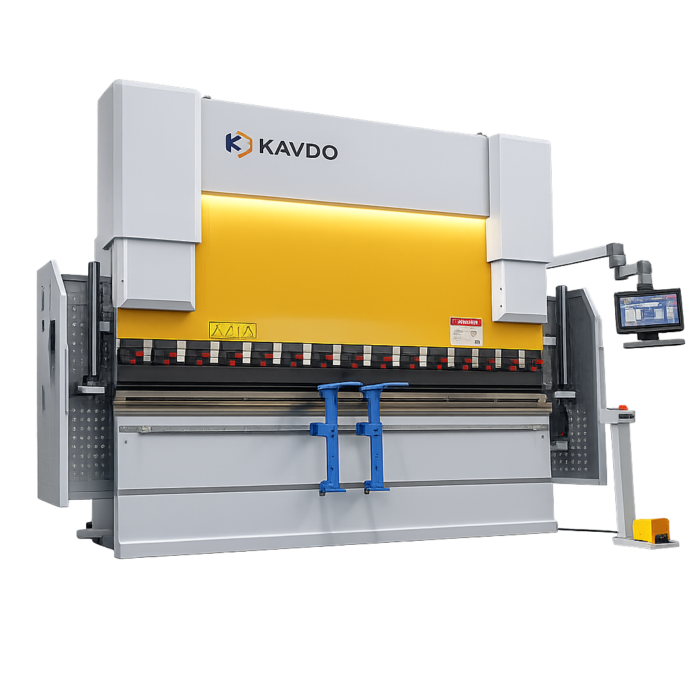

Advanced 6 Axis Press Brake for Precision Bending

Original price was: $41,600.00.Current price is: $38,000.00.set

The 6 axis press brake is a high-precision CNC bending machine designed for complex sheet metal forming. With advanced multi-axis control, it provides accurate positioning, efficient bending operations, and consistent results for industrial production. This machine is ideal for processing stainless steel, carbon steel, and aluminum sheets in industries such as metal fabrication, automotive parts, and machinery manufacturing. Its intelligent control system improves bending efficiency while reducing manual adjustments and production errors.

100 in stock

Add to compare
Add to wishlist

Electro-Hydraulic Press Brake

Item Unit 30T1200 30T1500 30T1600 40T1200 40T1500 40T1600 40T2000 40T2200 40T2500 63T1500 63T1600 63T2500 63T3200 80T2500 80T3200 80T4000 100T2500 100T3200 100T4000 125T2500 125T3200 125T4000 160T2500 160T3200 160T4000 160T5000 160T6000 200T3200 200T4000 200T5000 200T6000 250T3200 250T4000 250T5000 250T6000 300T3200 300T4000 300T4000 300T6000 400T3200 400T4000 400T5000 400T6000 500T3200 500T4000 500T5000 500T6000 500T7000 600T4000 600T5000 600T6000 600T6000 600T8000 800T6000 800T7000 800T8000 1000T6000 1000T7000 1000T8000 1200T6000 1200T7000 1200T8000
Bending Force KN 300 300 300 400 400 400 400 400 400 630 630 630 630 800 800 800 1000 1000 1000 1250 1250 1250 1600 1600 1600 1600 1600 2000 2000 2000 2000 2500 2500 2500 2500 3000 3000 3000 3000 4000 4000 4000 4000 5000 5000 5000 5000 5000 6000 6000 6000 6000 6000 8000 8000 8000 10000 10000 10000 12000 12000 12000
Bending Length mm 1200 1500 1600 1200 1500 1600 2000 2200 2500 1500 1600 2500 3200 2500 3200 4000 2500 3200 4000 2500 3200 4000 2500 3200 4000 5000 6000 3200 4000 5000 6000 3200 4000 5000 6000 3200 4000 5000 6000 3200 4000 5000 6000 3200 4000 5000 6000 7000 4000 5000 6000 7000 8000 6000 7000 8000 6000 70000 80000 6000 70000 80000
Column Distance mm 900 1100 1200 1000 1100 1200 1600 1800 2100 1100 1200 2100 2600 2100 2600 3200 2100 2600 3200 2100 2600 3200 2100 2600 3200 4000 5000 2600 3200 4000 5000 2600 3200 40004000 5000 2600 3200 40004000 5000 2600 3200 40004000 5000 2500 3000 4000 4800 5600 3000 4000 4800 5600 6800 4800 5600 6800 4800 5500 6500 4800 5600 6500
Throat Depth mm 250 250 250 250 250 250 250 250 250 300 300 300 300 300 300 300 350 350 350 350 350 350 400 400 400 400 400 400 400 400 400 450 450 450 450 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 600 600 600 600 600 600 600 600 600
Ram Stroke mm 160 160 160 160 160 160 160 160 160 160 160 160160 160 180 180 180 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 250 250 250 250 250 250 250 250 300 300 300 300 300 300 300 300 300 300 300 300 300 300 400 400 400 400 400 400 400 400 400
Daylight mm 430 430 430 430 430 430 430 430 430 450 450 450 450 450 450 450 480 480 480 480 480 480 480 480 480 480 480 480 480 480 480 525 525 525 525 575 575 575 575 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600
Table Width mm 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 260 260 260 260 260 260 260 260 260 260 260 260 260 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300
Table Height mm 750 750 750 750 750 750 750 750 850 850 850 850 880 850 880 880 920 920 920 920 920 920 920 920 920 1000 1050 930 950 1000 1100 1020 1020 1020 1150 1020 1100 1200 1200 1150 1150 1200 1200 1200 1580 1580 1600 1600 1580 1580 1600 160 160 1800 1850 1950 2100 2100 2100 2300 2300 2300
Oil Tank L 85 85 85 85 115 115 115 115 200 200 200 200 220 200 220 220 220 250 320 180 250 320 250 310 390 400 480 310 390 460 550 360 450 520 600 360 450 520 600 600 600 760 950 500 760 760 950 950 760 760 1100 950 950 950 950 950 950 950 950 950 950 950
Front Support 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 2 2 2 3 2 2 2 3 2 2 2 3 2 2 2 3 2 2 2 3 3 2 2 3 3 3 3 3 3 3 3 3 3 3 3
Servo Motor KW 3 3 3 5 5 5 5 5 5 6 6 6 6 8.7 8.7 8.7 8.7 8.7 8.7 10.8 10.8 10.8 13.2 13.2 13.2 13.2 13.2 16.7 16.7 16.7 16.7 21.4 21.4 21.421.4 21.4 26.9 26.9 26.9 26.9 33 33 33 33 45 45 45 45 45 55 55 55 55 55 33+33 33+33 33+33 45+45 45+45 45+45 55+55 55+55 55+55
Pump ml/r 8 8 8 8 10 10 10 10 10 10 10 10 10 16 16 16 16 16 16 20 20 20 25 25 25 25 25 32 32 32 32 40 40 40 40 50 50 50 50 50 50 50 50 63 63 63 63 63 80 80 80 80 80 50+50 50+50 50+50 63+63 63+63 63+63 80+80 80+80 80+80
Hydraulic Pressure 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28 28
Down Speed mm/s 200 200 200 200 150 150 150 150 150 160 160 160 160 180 180 180 200 200 200 200 200 200 150 150 150 150 150 120 120 120 120 120 120 120 120 100 100 120 120 90 90 90 90 100 100 100 100 100 80 80 80 80 80 80 80 80 80 80 80 80 80 80
Working Speed mm/s 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-150-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-15 0-12 0-12 0-12 0-12 0-7 0-7 0-7 0-7 0-70-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7 0-7
Return Speed mm/s 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160160 160 160 160 150 150 150 150 150 120 120 150 120 120 120 120 120 90 90 90 90 80 80 80 80 70 70 70 70 70 70 70 70 70 70 70 70 70 70 70 70 70 70 70
X-Axis Speed mm/s 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300
X-Axis Stroke mm/s 400 400 400 400 400 400 400 400 400 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 650 650 650 650 650 650 650 650 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750
R-Axis Speed mm/s 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200200200200200200200200200200 200 200 200 200 200 200 200 200 200 200 200
R-Axis Stroke mm/s 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 160 200 200 200 200 200 200 200 200 200 200 200 200 / / / / / / / / / / / / / / / / / / /
X Axis Accuracy mm/s 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05
Stop Finger 2 2 2 2 2 2 2 2 4 2 2 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Weight kg 2980 3100 3400 3500 3700 3700 3800 4200 4800 5105 5800 7500 6200 7000 8050 6300 7500 8800 8200 9300 10500 12000 14000 10000 12000 14000 16000 12000 13500 15500 18000 12500 14800 16000 22000 22500 26500 28500 31800 26000 32000 39000 42000 50000
Length mm 1600 1900 2000 1600 1900 2000 2500 2700 2900 1900 2000 2900 3600 2900 3600 4600 2900 3500 4400 2900 3600 4400 2900 3600 4400 5600 6600 3600 4400 5300 6600 3600 4400 5300 6700 3600 4400 5500 6700 3600 4400 5500 6400 3800 4600 5500 6400 7500 4500 5500 6600 7300 8600 6500 7500 8400 6300 7500 8600 6300 7500 8600
Width mm 1300 1300 1300 1300 1400 1400 1400 1400 1400 1500 1500 1500 1500 1550 1550 1600 1600 1600 1600 1650 1650 1600 1750 1750 1800 1850 1800 1850 1850 1850 1850 1900 1950 1950 1950 1950 1950 2000 2000 1950 2150 2150 2200 2300 2300 2300 2300 2500 2350 2350 2350 2350 2850 2850 2850 2850 3100 3100 3100 3200 3200 3200
Height mm 2100 2100 2100 2100 2150 2150 2150 2150 2150 2400 2400 2400 2400 2500 2500 2680 2600 2600 2650 2620 2630 2680 2700 2700 2750 2800 2950 2750 2780 2800 2980 2850 2880 2980 3100 2950 2980 3100 3200 3200 3200 3250 3350 3200 3200 3400 3500 4500 4500 4500 4500 4500 4500 5300 5300 5300 6800 6800 6800 7500 7500 7500
Specifications
Description

The 6 axis press brake is an advanced CNC sheet metal bending machine designed to deliver high precision, flexibility, and efficiency in modern fabrication workshops. Equipped with a multi-axis control system, this press brake enables accurate control of backgauge movements and ram positioning, allowing manufacturers to produce complex bending parts with excellent repeatability.

A typical 6-axis configuration includes Y1, Y2, X, R, Z1, and Z2 axes, which work together to achieve precise synchronization and positioning. The dual Y-axis hydraulic synchronization ensures stable and accurate ram movement, while the multi-axis backgauge system provides fast positioning for different bending sequences. This makes the machine ideal for producing complex sheet metal components used in electrical cabinets, automotive parts, kitchen equipment, elevator panels, and industrial enclosures.

The machine frame is built using high-strength welded steel construction, ensuring rigidity and long-term stability during heavy-duty operations. Combined with an intelligent CNC control system, operators can easily program bending angles, sequences, and backgauge positions through a user-friendly interface. This significantly improves productivity while reducing setup time and operator errors.

The 6 axis press brake is designed to meet the needs of modern sheet metal fabrication by providing reliable performance, flexible tooling compatibility, and advanced automation capabilities.

Key Features

  • 6-Axis CNC Control System – Enables precise control of ram and backgauge positioning for complex bending operations.

  • High Precision Hydraulic Synchronization – Ensures stable and accurate bending performance.

  • Multi-Axis Backgauge System – Improves positioning accuracy and reduces setup time.

  • Heavy-Duty Welded Frame – Provides excellent rigidity and long service life.

  • User-Friendly CNC Interface – Easy programming for efficient production and reduced operator workload.

  • Flexible Tooling Compatibility – Supports various punches and dies for different sheet metal bending applications.

What We Offer

Product Features Overview

CNC Controller Upgrade Options
Controller

CNC Controller Upgrade

Upgrade from the standard DA-53Tx to advanced DA-66S or premium DA-69S for 3D simulation, collision detection and offline programming.

  • DA-53Tx / DA-66S / DA-69S
  • ESA S830 / S840 available
  • Cybelec VisiTouch / ModEva
  • Up to 8+1 axis control
Press Brake Tooling and Dies
Tooling

Tooling & Die Sets

Standard and customized upper punches, multi-V lower dies, gooseneck tools, hemming tools and radius bending dies for all profiles.

  • Amada / Promecam / Wila style
  • Quick-clamp tool holders
  • Segmented & custom tooling
  • 42CrMo heat-treated steel
Front Sheet Support Arms
Material Handling

Front Support Arms

Adjustable front sheet followers that move in sync with the ram to support large or heavy sheet metal during the bending process.

  • Ball-bearing roller surface
  • Height follows ram stroke
  • Horizontal & vertical adjustment
  • Rails along full working length
Laser Safety Protection System
Safety

Laser Safety System

Advanced laser-based finger protection with dynamic beam that follows the punch tip, enabling safe high-speed bending without sacrificing productivity.

  • DSP laser protection (FIESSLER)
  • Dynamic speed switching
  • No muting zone required
  • EN 12622 compliant
Hydraulic Oil Cooling System
Hydraulic

Oil Cooling System

Industrial hydraulic oil cooler to maintain stable oil temperature during extended production runs, ensuring consistent bending accuracy and long component life.

  • Air-cooled / water-cooled options
  • Automatic temperature control
  • Extends seal and valve life
  • Essential for 2-shift+ operations
Real-time Angle Measurement System
Precision

Angle Measurement System

Real-time laser or tactile angle measurement integrated into the lower die, providing live feedback and automatic correction for first-bend accuracy.

  • Laser / tactile sensor types
  • Real-time angle readout
  • Auto springback compensation
  • Eliminates trial bends

Press Brake - 常见问题

Most Popular Questions

What is a press brake and how does it work?

A press brake is an industrial machine used to bend sheet metal. It works by clamping the workpiece between a punch (top tool) and die (bottom tool), then applying force to create precise bends. Most modern press brakes use air bending, which allows for flexible angle control with minimal tooling changes.

What types of press brakes do you offer?

We offer a range of press brake types including mechanical press brakes, hydraulic press brakes, and CNC press brakes. Our hydraulic and CNC models feature advanced deflection compensation, programmable backgauges, and precision control for complex bending operations.

What materials can your press brakes process?

Our press brakes can process various metals including mild steel, stainless steel, aluminum, copper, and galvanized steel. The bending capacity depends on material thickness, tensile strength, and bend length. Please refer to our tonnage charts for specific material capabilities.

What is the maximum bending length and thickness capacity?

Our press brake models range from 40 tons to 500+ tons with bending lengths from 1.5m to 6m or more. Maximum thickness capacity varies by model—typically 1mm to 25mm for mild steel. Contact us for specifications tailored to your requirements.

Can the press brake handle complex multi-bend parts?

Yes. Our CNC press brakes feature programmable backgauges with multiple axes (X, R, Z1, Z2), allowing for precise positioning of complex multi-bend parts. Optional tool changers and angle measurement systems further enhance productivity for batch production.

What are the advantages of CNC press brake over manual operation?

CNC press brakes offer higher precision, repeatability, and efficiency. They reduce setup time through programmable backgauges, minimize human error, and enable quick changeovers between different part programs. Deflection compensation ensures consistent bend angles across the full length.

How does the deflection compensation system work?

Under load, the ram and bed deflect slightly, causing uneven bends. Our compensation systems use hydraulic cylinders or mechanical wedge blocks in the worktable to counteract this deflection, ensuring uniform bend angles across the entire sheet length.

What maintenance is required for the press brake?

Regular maintenance includes hydraulic oil changes, lubrication of guide ways and bearings, inspection of punches and dies for wear, and verification of safety systems. We provide detailed maintenance schedules and training. Annual professional inspections are recommended.

What is the typical lead time and warranty period?

Standard models typically ship within 4-8 weeks. Custom configurations may require longer lead times. All our press brakes come with a comprehensive warranty covering major components. Extended warranty options are available for additional peace of mind.

Do you provide installation, training, and after-sales support?

Yes. We offer professional installation and commissioning, operator training on safe operation and programming, and comprehensive after-sales support including spare parts supply and technical assistance. Our global service network ensures prompt response when you need us.
