Original price was: $23,000.00.$22,000.00Current price is: $22,000.00.set

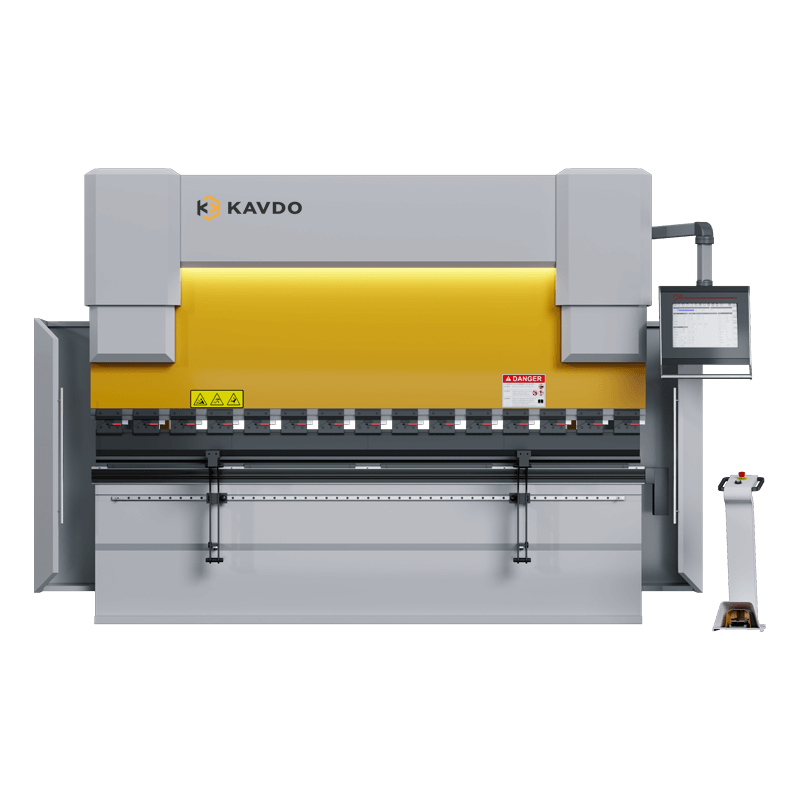

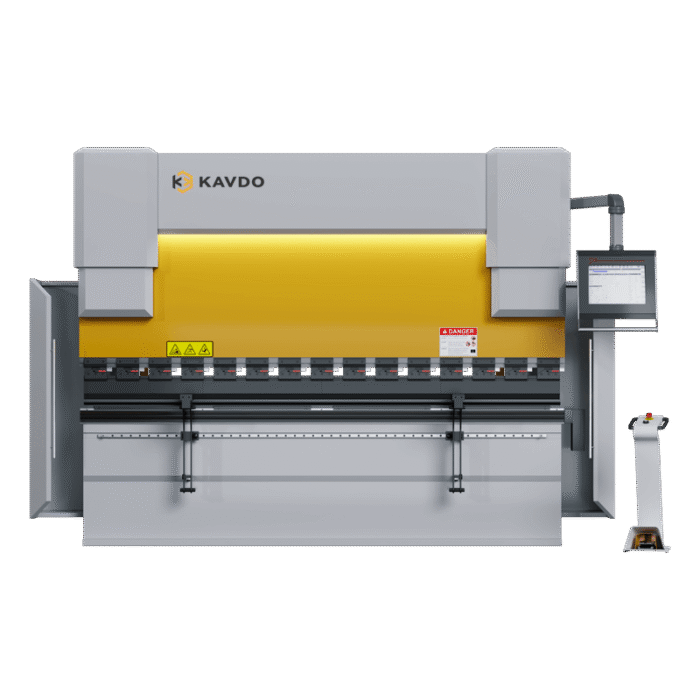

High-precision CNC press brake machine designed for efficient sheet metal bending.
Equipped with advanced CNC controllers, durable hydraulic systems, and precision backgauge technology, it ensures stable performance and accurate bending results.
Available in multiple tonnage and bending length options to meet different industrial fabrication needs. Suitable for processing stainless steel, carbon steel, aluminum, and other metal sheets widely used in sheet metal fabrication, automotive components, electrical cabinets, and construction industries.
| Item | Unit | PB-1400 | PB-1400 Pro | PB-1600 | PB-1600 Pro | PB-2000 | PB-2000 Pro | PB-2000 Max | PB-2500 | PB-2500 Por | PB-2500 Max | PB-3000 Max |
| Max. Bending Length | mm | 1400 | 1400 | 1600 | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 | 3000 |
| Max. Bending Width | mm | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Max. Bending Height | mm | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 170 | 110 |
| Min. Bending Height | mm | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Min. Bending Radius | mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Bending Angle | ° | ±180 | 4±1804 | 17±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 | ±180 |
| Bending Thickness (Stainless Steel) | mm | 1 | 1.5 | 1 | 1.5 | 1 | 1.5 | 2 | 1 | 1.5 | 2 | 1.5 |
| Bending Thickness (Carbon steel) | mm | 1.5 | 2 | 1.5 | 2 | 1.5 | 2 | 2.5 | 1.5 | 2 | 2 | 2 |
| Bending Thickness (Aluminum plate) | mm | 2.5 | 3.5 | 2.5 | 3.5 | 2.5 | 3.5 | 3.5 | 2.5 | 3.5 | 3.5 | 3.5 |
| Min. Material Thickness | mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Min. Indide Size (Four-Side) | mm | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 140*260 | 160*280 | 160*280 |
| Min. Working Accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| Max. Bending Speed | s/bending | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max. Feeding Speed | m/min | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Feeding Structure | / | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm | Pressing Arm |
| Worktable Structure | / | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball | Brush and Roller Ball |
| Motor Power | kw | 44.5 | 60 | 61 | 82 | 61 | 93 | 213 | 68 | 93 | 214.5 | 216 |
| Average Working Power | kw | 2.2 | 3.0 | 3.1 | 4.1 | 3.1 | 4.7 | 10.7 | 3.4 | 4.7 | 10.7 | 10.8 |
| Length | mm | 4600 | 5000 | 4800 | 5000 | 5150 | 5800 | 5800 | 6100 | 6300 | 6300 | 6900 |
| Width | mm | 2600 | 2800 | 2800 | 2800 | 3200 | 3170 | 3170 | 3800 | 3700 | 3700 | 4300 |
| Height | mm | 2400 | 2480 | 2300 | 2480 | 2300 | 2500 | 2500 | 2320 | 2500 | 2500 | 2800 |
The 100T3200 CNC Press Brake Machine is a high-precision sheet metal bending solution designed for medium to heavy-duty fabrication applications. With a 100-ton bending capacity and 3200 mm bending length, this machine provides excellent performance for bending stainless steel, carbon steel, aluminum, and other metal sheets with high accuracy and efficiency.
Equipped with a CNC control system, the machine enables automatic control of the backgauge and bending depth, significantly improving productivity and reducing manual operation errors. The synchronized hydraulic system ensures smooth and stable ram movement, delivering consistent bending angles across the entire workpiece.
The machine frame is manufactured from high-strength welded steel and processed through stress-relief treatment, guaranteeing long-term structural stability and durability. Combined with precision-ground tooling and an efficient crowning system, the press brake ensures uniform bending results even for long workpieces.
This model is widely used in industries such as metal fabrication, electrical cabinets, construction materials, automotive parts, and machinery manufacturing.
The 100T3200 CNC press brake is an ideal choice for manufacturers seeking reliable bending performance, high accuracy, and cost-effective production.
100 Ton Bending Capacity – Suitable for bending medium-thickness metal sheets with strong and stable force.
3200 mm Bending Length – Perfect for processing long sheet metal components.
Advanced CNC Control System – Easy programming and automatic control improve production efficiency.
High Precision Backgauge System – Ensures accurate positioning and repeatable bending results.
Hydraulic Synchronized Structure – Provides smooth operation and consistent bending angles.
Heavy-Duty Machine Frame – Welded steel construction with stress relief treatment for durability.
Automatic Crowning System – Compensates table deflection to maintain bending accuracy.
Wide Application Range – Ideal for sheet metal fabrication, cabinets, machinery parts, and structural components.
Upgrade from the standard DA-53Tx to advanced DA-66S or premium DA-69S for 3D simulation, collision detection and offline programming.
Standard and customized upper punches, multi-V lower dies, gooseneck tools, hemming tools and radius bending dies for all profiles.
Adjustable front sheet followers that move in sync with the ram to support large or heavy sheet metal during the bending process.
Advanced laser-based finger protection with dynamic beam that follows the punch tip, enabling safe high-speed bending without sacrificing productivity.
Industrial hydraulic oil cooler to maintain stable oil temperature during extended production runs, ensuring consistent bending accuracy and long component life.
Real-time laser or tactile angle measurement integrated into the lower die, providing live feedback and automatic correction for first-bend accuracy.
A press brake is an industrial machine used to bend sheet metal. It works by clamping the workpiece between a punch (top tool) and die (bottom tool), then applying force to create precise bends. Most modern press brakes use air bending, which allows for flexible angle control with minimal tooling changes.
We offer a range of press brake types including mechanical press brakes, hydraulic press brakes, and CNC press brakes. Our hydraulic and CNC models feature advanced deflection compensation, programmable backgauges, and precision control for complex bending operations.
Our press brakes can process various metals including mild steel, stainless steel, aluminum, copper, and galvanized steel. The bending capacity depends on material thickness, tensile strength, and bend length. Please refer to our tonnage charts for specific material capabilities.
Our press brake models range from 40 tons to 500+ tons with bending lengths from 1.5m to 6m or more. Maximum thickness capacity varies by model—typically 1mm to 25mm for mild steel. Contact us for specifications tailored to your requirements.
Yes. Our CNC press brakes feature programmable backgauges with multiple axes (X, R, Z1, Z2), allowing for precise positioning of complex multi-bend parts. Optional tool changers and angle measurement systems further enhance productivity for batch production.
CNC press brakes offer higher precision, repeatability, and efficiency. They reduce setup time through programmable backgauges, minimize human error, and enable quick changeovers between different part programs. Deflection compensation ensures consistent bend angles across the full length.
Under load, the ram and bed deflect slightly, causing uneven bends. Our compensation systems use hydraulic cylinders or mechanical wedge blocks in the worktable to counteract this deflection, ensuring uniform bend angles across the entire sheet length.
Regular maintenance includes hydraulic oil changes, lubrication of guide ways and bearings, inspection of punches and dies for wear, and verification of safety systems. We provide detailed maintenance schedules and training. Annual professional inspections are recommended.
Standard models typically ship within 4-8 weeks. Custom configurations may require longer lead times. All our press brakes come with a comprehensive warranty covering major components. Extended warranty options are available for additional peace of mind.
Yes. We offer professional installation and commissioning, operator training on safe operation and programming, and comprehensive after-sales support including spare parts supply and technical assistance. Our global service network ensures prompt response when you need us.
