How to Fix Slow Punching Speed in a Hydraulic Punching Machine: A Comprehensive Guide

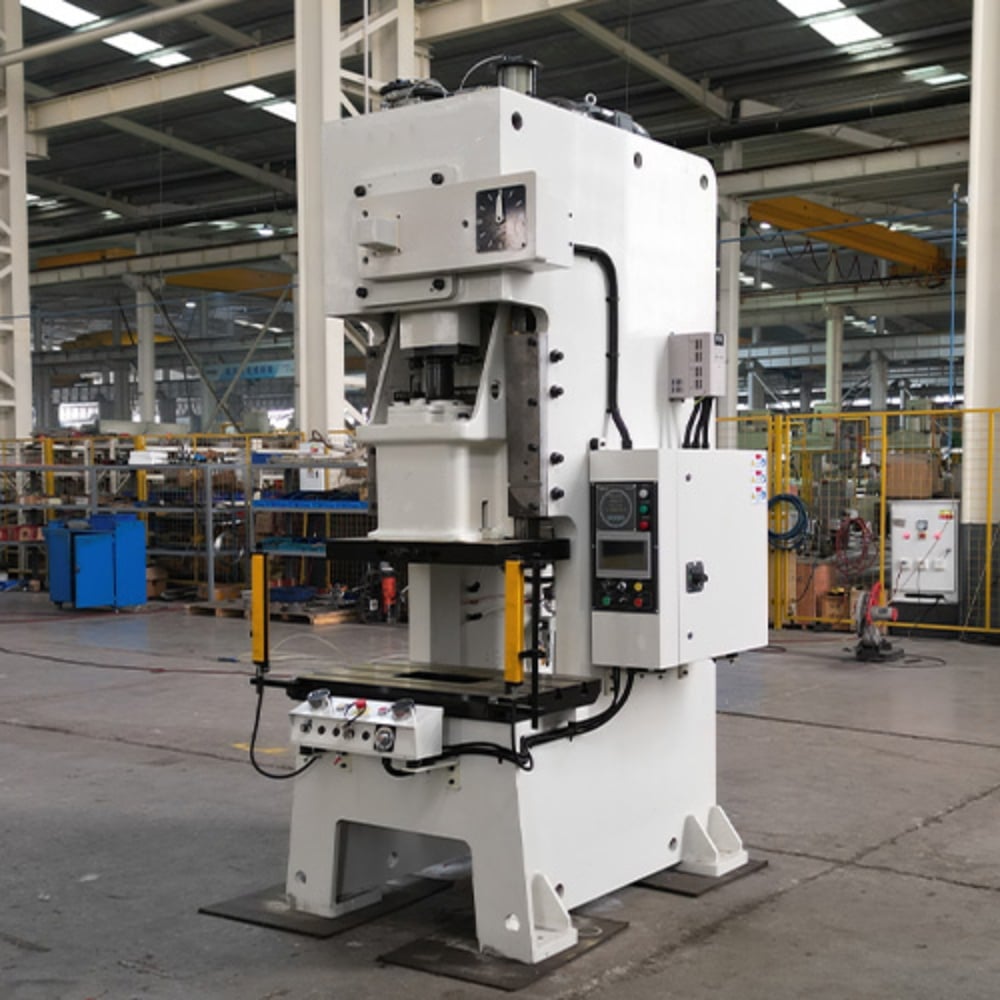

Introduction to Hydraulic Punching Machine Performance
In the fast-paced world of metal fabrication, efficiency is the cornerstone of profitability. The hydraulic punching machine is a workhorse in many shops, providing the force necessary to pierce through thick steel plates, aluminum sheets, and various alloys with precision. However, one of the most common frustrations for operators and shop managers is a noticeable decline in cycle speed. When a machine that used to punch 30 holes per minute drops to 20, the cumulative loss in productivity can be devastating to a project’s timeline.
Understanding how to Fix Slow Punching Speed In A Hydraulic Punching Machine requires a deep dive into the mechanics of fluid power, electrical control systems, and mechanical friction. A slow punching cycle isn’t just a minor annoyance; it is often a symptom of underlying issues that, if left unaddressed, could lead to catastrophic component failure. Whether the slowdown occurs during the approach, the actual piercing, or the return stroke, identifying the root cause is the first step toward restoring your equipment to its factory-rated performance.
HARSLE, a leader in industrial metalworking machinery, recognizes that uptime is everything. This guide is designed to provide technical insights into the various factors that influence punching speed and offer actionable solutions to get your production line back up to speed. From hydraulic fluid properties to the intricacies of solenoid valve response times, we will cover the essential maintenance and troubleshooting steps required for modern hydraulic punching systems.
Key Considerations Before Troubleshooting
Before diving into the internal components of the machine, it is vital to establish a baseline for performance. Not all “slowdowns” are caused by mechanical failure. Sometimes, the issue lies in the setup or the material being processed. The first consideration should always be the material thickness and hardness. If you have recently switched from 3mm mild steel to 6mm stainless steel, the machine will naturally cycle slower as it requires more pressure to reach the shear point, which may trigger a slower high-pressure stage in the hydraulic circuit.
Another critical factor is the ambient environment. Hydraulic machines are sensitive to temperature. In cold workshops, hydraulic oil becomes more viscous (thicker), making it harder for the pump to move the fluid through the valves and lines. Conversely, in extremely hot environments, the oil may thin out too much, leading to internal leakage within the pump or valves, which also reduces speed. Monitoring the operating temperature of the hydraulic reservoir is a fundamental step in diagnosing speed issues.
Furthermore, you must distinguish between a slow “approach” speed and a slow “punching” speed. If the ram moves quickly toward the workpiece but struggles to penetrate, the issue is likely pressure-related. If the ram moves slowly throughout the entire cycle, including the return stroke, the issue is likely flow-related. Understanding this distinction allows maintenance personnel to narrow down the search to either the pressure relief valves or the main hydraulic pump and flow control valves.
Technical Details: Identifying the Root Causes
1. Hydraulic Oil Quality and Viscosity
The lifeblood of any hydraulic punching machine is its oil. The viscosity of the oil directly impacts the flow rate. If the oil is too thick (high viscosity), it creates internal friction and resistance within the pipes and valves, slowing down the movement of the ram. If the oil is too thin (low viscosity) due to overheating or the wrong grade, it can bypass seals and internal components, leading to a loss of volumetric efficiency. To Fix Slow Punching Speed In A Hydraulic Punching Machine, always ensure you are using the manufacturer-recommended ISO grade (typically ISO 46 or 68).
Contamination is another silent killer of speed. Microscopic particles of metal, dust, or moisture can cause the oil to degrade. Contaminated oil increases wear on the pump’s internal gears or pistons, reducing its ability to maintain a consistent flow rate. Regularly changing the hydraulic filters and performing oil analysis can prevent these issues from slowing down your machine.
2. Pump Efficiency and Wear
The hydraulic pump is responsible for converting mechanical energy into fluid flow. Over time, the internal tolerances of the pump widen due to wear. This results in “slippage,” where fluid leaks from the high-pressure side back to the low-pressure side within the pump itself. When slippage occurs, the pump cannot deliver the required volume of oil to the cylinder, resulting in a slower ram movement. If your machine struggles to maintain speed even when the oil is fresh and the temperature is optimal, the pump may need a bench test or replacement.
3. Solenoid Valve and Manifold Issues
Directional control valves regulate the flow of oil to the cylinder. If the spool inside a solenoid valve is partially blocked by debris or if the return spring has weakened, the valve may not open fully. A restricted orifice acts like a bottleneck, limiting the amount of oil that can reach the cylinder. Additionally, electrical issues such as low voltage to the solenoids can cause sluggish valve actuation, adding milliseconds to every cycle that eventually become noticeable as a slow punching speed.
4. Cylinder Seal Integrity
Internal leakage within the hydraulic cylinder is a common cause of slow performance. If the piston seals are worn, high-pressure oil can leak from the cap end to the rod end (or vice versa) during the stroke. This internal bypass means that not all the fluid pumped into the cylinder is contributing to the movement of the ram. This is often accompanied by the ram “drifting” or failing to hold position when the machine is stopped mid-stroke.
5. Mechanical Friction and Lubrication
While the hydraulic system provides the power, the mechanical guides and gibs ensure the ram moves straight. If the guide rails are poorly lubricated or if the gibs are adjusted too tightly, the resulting friction can significantly slow down the machine. In extreme cases, lack of lubrication can cause the ram to “stutter” or move in a jerky fashion. Regular application of high-quality industrial grease to all sliding surfaces is essential for maintaining high-speed operation.
Selection Advice: Choosing the Right Machine for Speed
When purchasing a new hydraulic punching machine, it is important to look beyond just the maximum tonnage. To ensure long-term speed and reliability, consider the following technical specifications:
- High-Speed Valve Systems: Look for machines equipped with high-response solenoid valves. These valves reduce the transition time between the approach, punch, and return phases of the cycle.
- Servo-Hydraulic Technology: Modern machines, like those offered by HARSLE, often utilize servo-motors to drive the hydraulic pump. This allows for precise control over flow and pressure, significantly increasing cycle speeds compared to traditional fixed-displacement pump systems.
- Cooling Systems: A machine with an integrated oil cooler will maintain consistent oil viscosity throughout long shifts, preventing the slowdowns associated with overheating.
- Rigid Frame Design: A more rigid frame minimizes deflection during the punch. While this primarily affects accuracy, it also ensures that the hydraulic energy is spent on piercing the material rather than stretching the machine frame, leading to a crisper, faster cycle.
Investing in a machine with a reputable hydraulic brand (such as Rexroth or Vickers components) ensures that replacement parts are readily available and that the system is engineered for the rigors of industrial use. HARSLE machines are designed with these high-end components to ensure that the punching speed remains consistent over years of heavy operation.
Maintenance Checklist to Maintain Punching Speed
To prevent the need to Fix Slow Punching Speed In A Hydraulic Punching Machine, implement a rigorous preventative maintenance schedule. Use the following checklist as a guide:
| Component | Action Required | Frequency |
|---|---|---|
| Hydraulic Oil | Check level and color; look for foaming or cloudiness. | Daily |
| Oil Filters | Replace filter elements to ensure unrestricted flow. | Every 1,000 Hours |
| Guide Rails | Clean and apply fresh industrial grease. | Daily |
| Oil Cooler | Clean dust from fins to ensure efficient heat exchange. | Weekly |
| Hoses & Fittings | Inspect for leaks or kinks that restrict flow. | Monthly |
| Solenoid Valves | Check electrical connections and coil temperature. | Quarterly |
Frequently Asked Questions (FAQ)
Why does my punching machine slow down after running for two hours?
This is almost always related to oil temperature. As the machine runs, the hydraulic oil heats up and its viscosity drops. If the oil becomes too thin, internal leakage in the pump and valves increases, reducing the volume of oil reaching the cylinder. Check your oil cooling system and ensure the reservoir is filled to the correct level.
Can dull tooling cause slow punching speed?
Yes. Dull punches and dies require significantly more force to penetrate the material. Most hydraulic systems are designed to switch from a high-speed/low-pressure approach to a low-speed/high-pressure punching stroke. If the tools are dull, the machine spends more time in the slow, high-pressure phase, increasing the overall cycle time.
How do I know if my hydraulic pump is failing?
Common signs of pump failure include increased noise (whining or cavitation), excessive heat generation, and a gradual loss of speed that cannot be fixed by changing the oil or filters. A flow meter test can confirm if the pump is delivering its rated output.
Does the type of hydraulic oil really matter?
Absolutely. Using an oil with the wrong viscosity index can lead to sluggish performance in cold weather or excessive thinning in hot weather. Always follow the manufacturer’s specifications to ensure the hydraulic circuit operates within its designed parameters.
Conclusion
A slow hydraulic punching machine is a liability in a competitive manufacturing environment. By understanding the relationship between fluid dynamics, mechanical friction, and electrical control, operators can effectively Fix Slow Punching Speed In A Hydraulic Punching Machine and prevent future occurrences. Regular maintenance—specifically focusing on oil quality, filtration, and lubrication—is the most cost-effective way to ensure your equipment operates at peak performance.
At HARSLE, we pride ourselves on engineering machinery that stands the test of time. Our hydraulic punching machines are built with high-efficiency systems designed to minimize cycle times and maximize output. If you are experiencing persistent speed issues or are looking to upgrade to a more modern, high-speed solution, our technical team is ready to assist you with expert advice and industry-leading equipment.
